For small batch production, CNC turning can seem expensive on a per-unit basis due to initial setup and programming costs. However, it is often the most cost-effective and superior manufacturing method when high precision, specific material properties, or functional strength are required, making it an invaluable investment for low-volume runs of quality-critical parts. This comprehensive guide explores the true cost drivers, compares alternatives, and provides actionable strategies to optimize your budget for small batch CNC turning projects.

Table of Contents

• What Exactly is Small Batch CNC Turning?
• The Core Question: Why Does Per-Unit Cost Seem High for Small Batches?
  • The Impact of Non-Recurring Engineering (NRE) Costs
  • Material Sourcing and Minimum Order Quantities (MOQs)
• Deconstructing the Total Cost: A Detailed Breakdown of CNC Turning Price Factors
  • Part Design & Complexity
  • Material Selection
  • Machining Time
  • Tooling Requirements
  • Finishing and Post-Processing
• When is CNC Turning the Most Cost-Effective Choice for Small Batches?
  • When Precision and Tight Tolerances are Non-Negotiable
  • When Material Properties are Critical
  • For Functional Prototypes and Bridge Production
• How to Significantly Reduce CNC Turning Costs for Your Small Batch Project
  • Design for Manufacturability (DFM)
  • Smart Material Selection
  • Consolidate Your Orders
  • Provide Clear and Complete Documentation
• CNC Turning vs. Alternatives for Small Batches: A Head-to-Head Comparison
• The Final Verdict: Is CNC Turning an Expense or an Investment?

What Exactly is Small Batch CNC Turning?

Before dissecting the costs, it’s essential to define our terms. In manufacturing, “small batch production” typically refers to quantities that fall between one-off prototyping and full-scale mass production. This can range anywhere from a single part to several hundred or even a thousand units. This production scale is critical for new product introductions, creating custom components for specialized machinery, or serving niche markets where demand doesn’t justify massive investment in tooling like molds or dies.

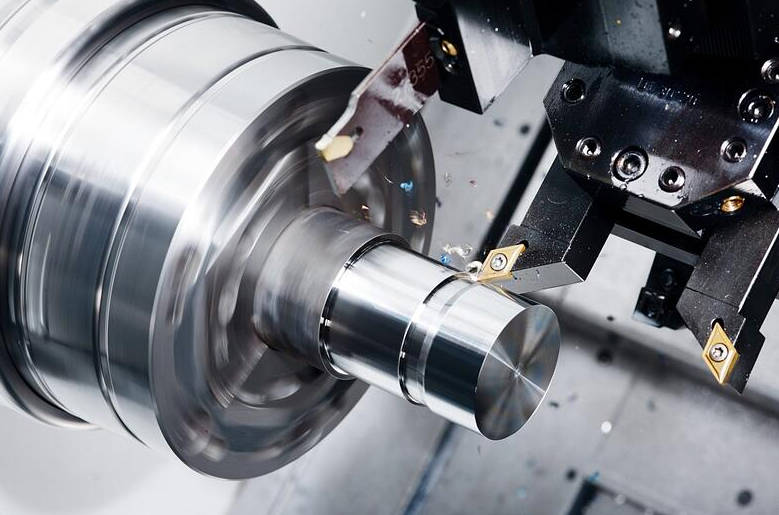

CNC (Computer Numerical Control) turning is a subtractive manufacturing process where a block or rod of material is held in a chuck and rotated while a cutting tool is fed to the piece to remove material and create a final, cylindrical part. It’s renowned for its ability to produce parts with exceptional precision and excellent surface finishes. Understanding whether this advanced process is financially viable for your low-volume project is a crucial decision for engineers, designers, and entrepreneurs alike.

The Core Question: Why Does Per-Unit Cost Seem High for Small Batches?

The primary reason the “sticker shock” occurs with small batch CNC turning quotes is the amortization of fixed, upfront costs. Unlike processes where the cost-per-part is relatively flat, CNC machining has significant initial hurdles that must be overcome before the first chip is even cut. These are known as Non-Recurring Engineering costs.

The Impact of Non-Recurring Engineering (NRE) Costs

NRE costs are one-time expenses required to get a project started. For a batch of 10,000 parts, these costs are negligible when spread across each unit. For a batch of 10, they represent a substantial portion of the total price. Key NRE costs in CNC turning include:

• CAM Programming: A skilled programmer must translate the 3D CAD model into a set of instructions (G-code) that the CNC machine can understand. This involves defining toolpaths, cutting speeds, and feed rates. This can take several hours, regardless of whether 5 or 500 parts are being made.
• Machine Setup: A machinist must prepare the CNC lathe, which includes installing the correct work-holding (chucks, collets), loading and aligning the raw material stock, and setting up all the necessary cutting tools in the turret. This process is identical for a small or large run.
• First-Off Inspection: The first part produced is meticulously inspected to ensure it meets all drawing specifications and tolerances. This quality assurance step is a fixed time cost.

Imagine a fixed setup cost of $300. For a 300-part run, that adds only $1 per part. For a 10-part run, it adds a hefty $30 to each part before material and machine time are even considered. This principle of amortization is the single biggest factor influencing small-batch pricing.

Material Sourcing and Minimum Order Quantities (MOQs)

Material suppliers often sell raw stock in standard lengths or quantities. Purchasing a small piece of an exotic material like Inconel or medical-grade titanium for a handful of parts can be disproportionately expensive compared to buying it in bulk. The machining shop must pass on the cost of purchasing a full bar or sheet, even if your project only requires a fraction of it. This is especially true for less common plastics or specialized metal alloys that are not kept in regular inventory.

Deconstructing the Total Cost: A Detailed Breakdown of CNC Turning Price Factors

Beyond the initial setup, several variables directly influence the final quote for your turned parts. Understanding these allows you to make informed design and planning decisions.

Part Design & Complexity

The more complex the part, the more it will cost. Simplicity is key to affordability.

• Tolerances: Standard tolerances (e.g., ±0.1mm) are relatively easy to achieve. Tighter tolerances (e.g., ±0.01mm) require more precise machine calibration, slower cutting speeds, specialized measurement tools, and more operator skill, all of which increase machining time and cost.
• Geometry: A simple shaft with two diameters is far cheaper than a part with complex curves, multiple steps, threads, grooves, and cross-drilled holes. Each additional feature often requires a different tool or operation, adding to programming and cycle time.
• Surface Finish: A standard “as-machined” finish is the most economical. Requiring a very fine or polished surface (low Ra value) necessitates additional finishing passes at slower speeds, significantly increasing the time the part spends on the machine.

Material Selection

Your choice of material has a dual impact: the raw material cost and its machinability. Machinability refers to how easily a material can be cut. Poor machinability means slower cutting speeds and increased tool wear, leading to longer cycle times and higher costs.

Machining Time

This is the literal “time on machine.” CNC shops have an hourly rate for each machine that covers electricity, maintenance, depreciation, and operator salary. A part that takes 30 minutes to machine will cost five times as much in machine time as a part that takes 6 minutes. Part complexity and material machinability are the biggest drivers of this factor.

Tooling Requirements

Most shops have a wide array of standard turning inserts, drills, and end mills. However, if your design requires a non-standard thread, a special groove profile, or a unique form tool, the shop may need to purchase custom tooling. The cost of this specialized tool will be passed on to your project, making it a significant expense for a small batch.

Finishing and Post-Processing

The cost doesn’t end when the part comes off the lathe. Any subsequent operations add to the final price. These can include anodizing (for aluminum), bead blasting, polishing, heat treating (to increase hardness), or plating (with nickel, chrome, etc.). These are often outsourced to other vendors, adding both cost and lead time.

When is CNC Turning the Most Cost-Effective Choice for Small Batches?

Despite the high per-unit cost, there are many scenarios where CNC turning is not just the best option but the only viable one. The value it delivers in precision and material performance often far outweighs the price.

When Precision and Tight Tolerances are Non-Negotiable

For components in medical devices, aerospace applications, optical equipment, or high-performance engines, precision is paramount. Processes like 3D printing cannot achieve the tight tolerances (often in the micron range) and fine surface finishes that CNC turning can deliver. In these cases, the “cost” of failure from an imprecise part is infinitely higher than the manufacturing cost.

When Material Properties are Critical

CNC turning can shape parts from solid blocks of metal, alloy, or high-performance plastic. This means the finished part retains the full, uncompromised strength, thermal stability, and chemical resistance of the base material. For functional parts that must withstand significant stress, high temperatures, or harsh environments, there is no substitute for a part machined from a solid billet. This is a significant advantage over layered manufacturing methods like 3D printing, which can have anisotropic properties (different strengths in different directions).

For Functional Prototypes and Bridge Production

When you need to test a prototype made from the exact end-use material, CNC turning is the ideal solution. It allows you to create a mechanically identical part to what would be mass-produced, enabling rigorous real-world testing before committing to six-figure investments in injection molding tools or casting dies. Furthermore, CNC turning serves as an excellent “bridge production” method, allowing you to manufacture and sell the first few hundred units of a new product while the long-lead-time tooling for mass production is being fabricated.

How to Significantly Reduce CNC Turning Costs for Your Small Batch Project

You have considerable control over the final cost of your project. By making smart choices during the design phase, you can dramatically lower the price without compromising function.

Design for Manufacturability (DFM)

• Simplify Geometry: Remove any features that are purely aesthetic and do not serve a functional purpose. Every extra groove, chamfer, or contour adds time and cost.
• Loosen Tolerances: Critically review your drawing. Apply tight tolerances only to the features that absolutely require them (e.g., bearing fits, mating surfaces). For non-critical dimensions, use a standard tolerance block.
• Use Standard Tool Sizes: Design internal corner radii to be slightly larger than the standard end mill or drill bit radius. Designing for a non-standard 3.7mm corner radius when a 4mm one would suffice requires a custom tool, adding unnecessary cost. Design holes to match standard drill bit sizes.

Smart Material Selection

Don’t over-specify your material. If your part is a simple bracket that will not be under high stress, choosing Aluminum 6061 is far more economical than Stainless Steel 316. Consult with your machine shop; their experts can often recommend a more machinable and less expensive alternative material that still meets your functional requirements.

Consolidate Your Orders

If you anticipate needing several different but small batches of parts over the next few months, try to place the order all at once. This allows the shop to optimize machine setup and potentially buy material in larger, more economical quantities, passing the savings on to you.

Provide Clear and Complete Documentation

A clean, well-dimensioned 2D drawing to accompany your 3D CAD model can save a programmer significant time. Clearly indicate critical dimensions, tolerances, surface finish requirements, and any threads. The less ambiguity there is, the less time a shop has to spend seeking clarification, which reduces the quoting and programming time.

CNC Turning vs. Alternatives for Small Batches: A Head-to-Head Comparison

How does CNC turning stack up against other popular low-volume manufacturing methods?

The Final Verdict: Is CNC Turning an Expense or an Investment?

To label CNC turning as simply “expensive” for small batch production is to overlook its immense value. While the initial per-unit cost may be higher than alternatives, you are not just paying for a shape; you are paying for precision, performance, and reliability. For applications where a part must not fail, where it must hold a tight tolerance, or where it must be made from a specific, high-strength material, CNC turning isn’t an expense—it’s a necessary and wise investment.

By understanding the cost drivers and applying smart design for manufacturability (DFM) principles, you can effectively manage the budget of your small-batch project. The key is to evaluate the total value proposition. When quality and performance are the primary metrics, CNC turning consistently proves to be the most cost-effective solution for bringing high-fidelity small-batch parts to life.
