1. Introduction

CNC machining is a cornerstone of modern manufacturing, enabling the creation of complex and precise components for a vast array of industries. From custom automotive parts to medical devices and aerospace components, the technology’s versatility is unmatched. A critical but often misunderstood aspect of this process is the concept of machining tolerances.

CNC machining tolerances define the allowable variation in a part’s dimension, ensuring proper fit, function, and performance. While a part’s nominal dimensions are specified in the design, it is impossible for any machine to produce a part that is perfectly to size. Tolerances provide a crucial window of acceptable deviation. They are the silent architects of a product’s success, determining whether a part will assemble correctly, function reliably, and whether it can be produced efficiently and affordably.

The choice of tolerance—whether to opt for a standard or a high-precision approach—is a fundamental decision that impacts every stage of a project. It directly influences factors like cnc machining cost, production speed, and the overall quality and reliability of the final product. Understanding the nuances between standard and precision CNC machining is essential for designers, engineers, and project managers looking to balance functionality with manufacturability and cost-effectiveness. In this guide, we’ll explore these concepts in detail, from the basic definitions to industry standards and real-world case studies.

Let’s begin with a deeper look into what CNC machining tolerances are and why they are so vital.

2. What Are CNC Machining Tolerances?

At its core, a tolerance is a permissible variation in a part’s dimension. It defines the difference between the nominal dimension (the ideal size specified in the design) and the actual dimension (the size of the part after it has been machined). This is a critical concept because, in reality, no manufacturing process can achieve a perfect dimension. Tolerances account for this inevitable variation, ensuring that parts still fit together and function as intended.

There are several types of tolerances used in CNC machining:

• Linear Tolerances: These define the acceptable variation in linear dimensions, such as length, width, and height.
• Angular Tolerances: These specify the permissible deviation from a nominal angle.
• Geometric Tolerances (GD&T): This is a more complex system that controls the form, orientation, profile, and location of a part’s features. GD&T is crucial for intricate parts where the relationship between features is critical.
• Surface Roughness: While not a dimensional tolerance, surface roughness defines the texture of a part’s surface and is often specified on technical drawings.

2.1 How Material and Machine Type Affect Tolerances

The tolerances a CNC machining manufacturer can achieve are not just a matter of skill; they are also heavily dependent on the equipment and materials used.

• Machine Type: The type of CNC machine plays a significant role. A 3-axis CNC machine, for example, has different capabilities and achievable tolerances compared to a more advanced 5-axis machine, which can machine more complex geometries with greater precision. The quality and age of the machine also influence its ability to hold tight tolerances.
• Material: The material being machined also affects the final tolerance. Titanium CNC Machining and Aluminum CNC Machining have different characteristics. Metals and plastics, for instance, behave very differently during machining due to varying hardness, thermal expansion, and stability. Softer materials may be more prone to deflection, while harder materials may cause more tool wear, both of which can impact precision.
• Part Size: The overall size of a part also influences the achievable tolerance. It is generally easier to hold tight tolerances on smaller parts than on very large ones due to factors like thermal expansion and machine bed size limitations.

Understanding these factors is crucial when specifying tolerances. An overly tight tolerance on a large part or a challenging material may be difficult to achieve, leading to higher costs and longer production times.

3. Standard CNC Machining Tolerances

Standard CNC machining tolerances represent the most common and cost-effective approach to manufacturing. They are suitable for a vast range of applications where parts don’t require extremely tight fitment or complex, critical functionality.

The typical range for standard tolerances is ±0.1 mm (±0.005 in). This level of precision is readily achievable with most modern CNC machines and materials. It’s the go-to choice for a wide variety of projects, including:

• General mechanical parts
• Prototypes
• Non-critical assemblies
• Rapid CNC machining for quick turnaround projects
• Heatsink cnc machining, where precise thermal conductivity is key but exact dimensions for non-critical features are less so
• CNC aluminum parts for general-purpose applications like enclosures and brackets

The key advantages of using standard tolerances are directly tied to production efficiency. With a wider acceptable variation, manufacturers can achieve lower costs and faster production speeds. This makes standard tolerance machining ideal for low volume CNC machining and projects where budget and speed are prioritized over extreme precision. For many projects, especially those for general use or prototyping, an over-specified tolerance is simply an unnecessary expense.

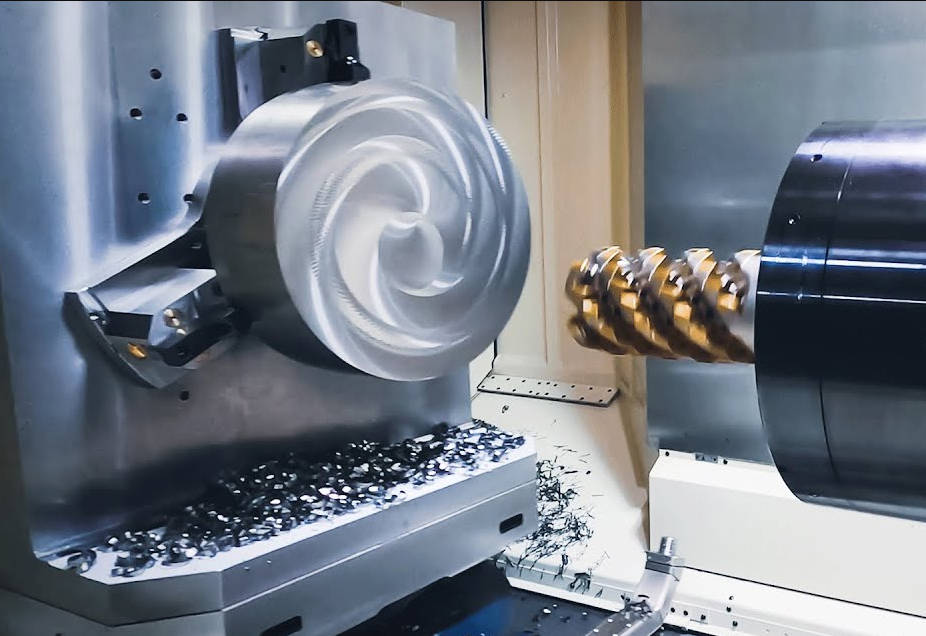

4. Precision CNC Machining Tolerances

In contrast to standard tolerances, precision CNC machining is required for applications where a part’s dimensions are absolutely critical for its function, safety, or assembly. This level of machining pushes the boundaries of manufacturing capability and is achieved through specialized equipment, highly skilled machinists, and rigorous quality control.

The typical range for precision tolerances is ±0.01 mm (±0.0005 in). This is ten times tighter than standard tolerances and is necessary for industries where even a minor deviation can lead to catastrophic failure. Industries that heavily rely on precision CNC machining include:

• Aerospace CNC Machining: For turbine blades and structural components where tight tolerances ensure safety and aerodynamic efficiency.
• Medical CNC Machining: For surgical instruments, implants, and diagnostic equipment where components must function flawlessly.
• Automotive CNC Parts: For critical engine components, transmission parts, and custom automotive CNC parts where precision ensures smooth operation and longevity.
• Robotics and Electronics: For complex assemblies and electronic housings where components must fit together perfectly.

Achieving these tight tolerances presents significant challenges. It requires longer machining times, more frequent tool changes, and a controlled environment to minimize thermal expansion. Consequently, the cost and lead time are significantly higher than for standard machining.

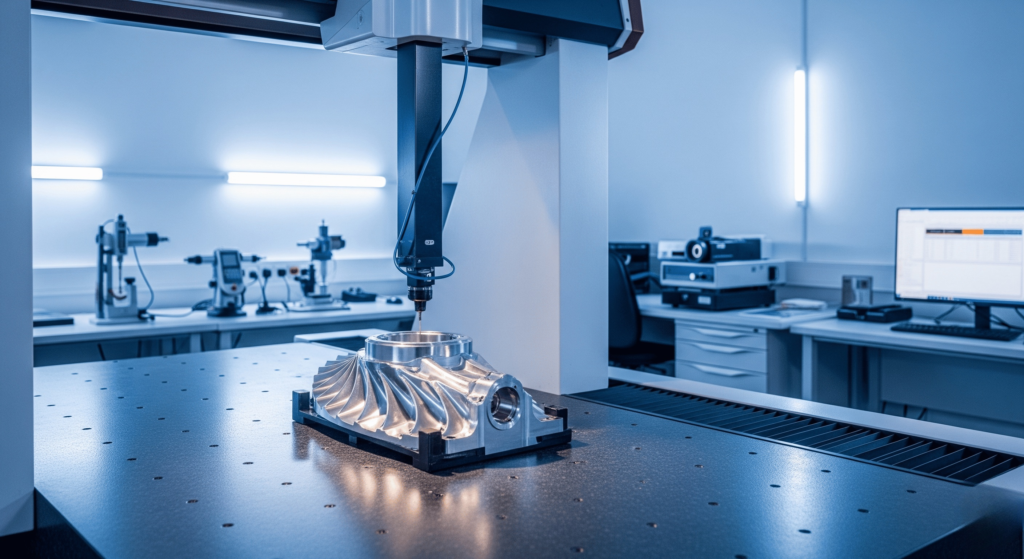

4.1 Inspection and Quality Control in Precision Machining

Given the strict requirements, inspection and quality control are paramount in precision machining. A single out-of-spec part can compromise an entire assembly. Specialized equipment is used to verify that every dimension is within the specified tolerance range. Common inspection tools include:

• CMM (Coordinate Measuring Machine): A highly accurate device that uses a probe to measure a part’s geometry.
• Calipers and Micrometers: Standard tools for measuring linear dimensions with high accuracy.
• Optical Inspection Systems: Used for non-contact measurement of complex geometries.

In precision machining, a quality report—such as an Inspection Report or Certificate of Conformance (COC)—is often a mandatory deliverable. This document details the measurements of the final part, providing a verifiable record of its adherence to the design specifications.

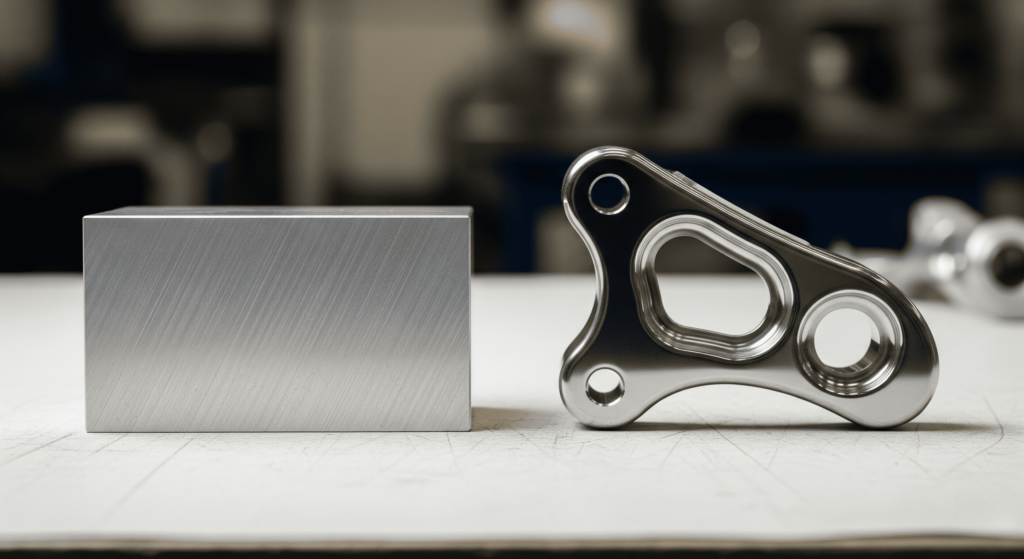

5. Standard vs Precision: Key Differences

The choice between standard and precision machining is a fundamental decision that significantly impacts a project’s timeline, cost, and final product quality. The following table provides a clear, side-by-side comparison of the key differences:

Standard machining offers a balance of quality and efficiency, making it the ideal choice for projects where budget and speed are the top priorities. This is often the case for consumer electronics and general-purpose components.

In contrast, precision machining is a specialized process reserved for applications where uncompromising performance and reliability are non-negotiable, such as in the medical and aerospace industries. It is a more involved process with higher costs and longer lead times, but it yields components that can withstand extreme conditions and meet the most stringent functional requirements.

6. How to Choose the Right Tolerance for Your Project

Selecting the appropriate tolerance is a critical design decision. It requires a careful balancing act between the part’s functional requirements and the practicalities of manufacturing. To make an informed choice, you should ask several key questions:

• Does the part need to fit with other components? Parts designed for press-fit or interference-fit assemblies will require tighter tolerances than those in non-critical applications.
• Is it a safety-critical part? Components in industries like aerospace and medical devices, where failure could have severe consequences, must be machined to extremely tight tolerances.
• Are you prioritizing cost or performance? A tighter tolerance almost always means a higher cost and longer lead time. If a standard tolerance is sufficient for the part’s function, choosing a tighter one is known as “over-engineering” and can add unnecessary expense to your project.

6.1 Design Tips: How to Define Tolerances Effectively

When designing your parts and creating technical drawings, it’s crucial to specify tolerances effectively. Here are some design tips:

• Functional-Based Tolerancing: Engineers should apply tolerances based on the part’s function, not on a “just in case” basis. For instance, a bearing bore requires a very tight tolerance, whereas a mounting hole for a simple screw can have a much looser one.
• Understanding Fit Types: Familiarity with common fit types, such as clearance fit, interference fit, and transition fit, is essential for correctly specifying tolerances for mating parts. This knowledge ensures the final assembly will function as intended.
• Communicate with Your Manufacturer: A great CNC machining company will collaborate with you to optimize your design. They can advise on the most cost-effective tolerances that still meet your functional requirements.

7. Common Misconceptions About CNC Tolerances

Navigating the world of CNC machining can be tricky, and several common misconceptions about tolerances can lead to costly mistakes and project delays.

• “Tighter is always better.” This is perhaps the most common misconception. While it might seem logical to ask for the tightest possible tolerance to ensure a perfect part, this often leads to over-engineering. A tighter tolerance requires more advanced machinery, longer cycle times, and more rigorous inspection, all of which drive up the CNC machining cost significantly. For many applications, a standard tolerance is perfectly sufficient, and specifying a tighter one is an unnecessary expense.
• “All CNC factories have the same tolerance capabilities.” The reality is that the ability to hold tight tolerances varies greatly among CNC manufacturers. The type and quality of the machine, the tooling used, and the experience of the machinists all play a role. A company specializing in precision machining cncfor the aerospace industry will have different capabilities than a general **cnc machining company focused on prototyping. It’s crucial to vet your cnc manufacturers and choose a partner with the right equipment and expertise for your project’s specific needs.

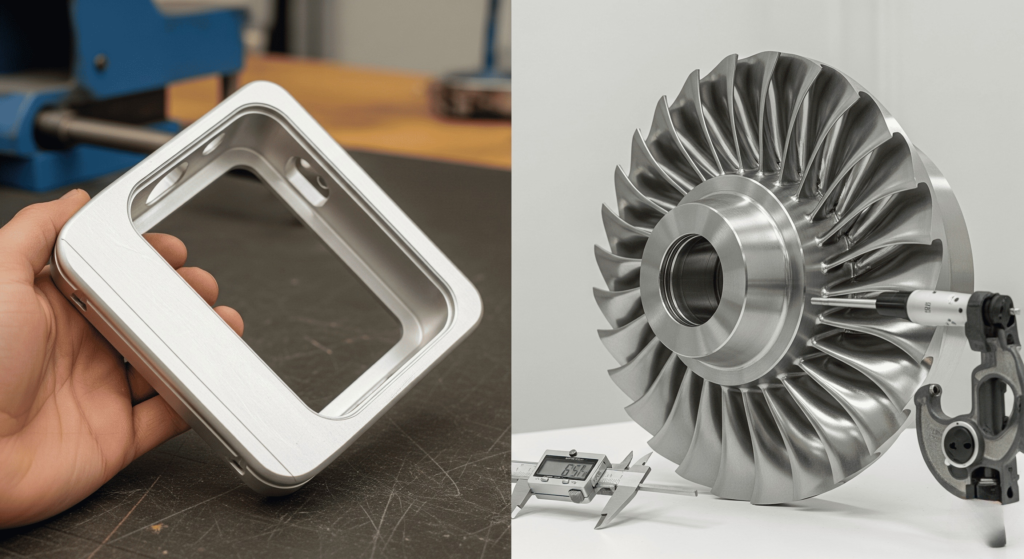

7.1 Case Studies: Standard vs. Precision in Different Industries

To illustrate the importance of choosing the right tolerance, let’s look at two contrasting examples:

• Aerospace vs. Consumer Electronics: An aerospace turbine blade requires extremely tight tolerances to ensure it can withstand the immense stresses and temperatures of flight. A tiny deviation could lead to catastrophic failure. Conversely, the housing for a consumer electronics device can be made with standard tolerances. While a perfect fit is desired, a slight variation in the dimensions of the case is unlikely to affect the device’s functionality. This shows why the same type of component, a metal housing, might require different tolerances depending on its end-use.

8. Industry Standards for CNC Machining Tolerances

To ensure clarity and consistency in manufacturing, several industry standards and specifications guide the application of tolerances. These standards provide a common language between designers and china cnc machining service providers, ensuring everyone is on the same page.

• ISO 2768: This is a general tolerance standard that provides default tolerances for parts without specific callouts on the drawing. It is widely used for general engineering applications and helps to avoid over-specification.
• ASME Standards and GD&T: For more complex and critical parts, standards from the American Society of Mechanical Engineers (ASME) and Geometric Dimensioning and Tolerancing (GD&T) are used. GD&T provides a precise way to define the allowable form, orientation, profile, and location of part features, which is essential for complex assemblies and high-precision components.

When communicating with a custom cnc machining manufacturer, it is vital to clearly and accurately mark all tolerances on your technical drawings. Ambiguity can lead to misunderstandings, rework, and increased costs.

9. Balancing Cost, Quality, and Functionality

Ultimately, the choice of tolerance is about finding the optimal balance between three critical factors: cost, quality, and functionality.

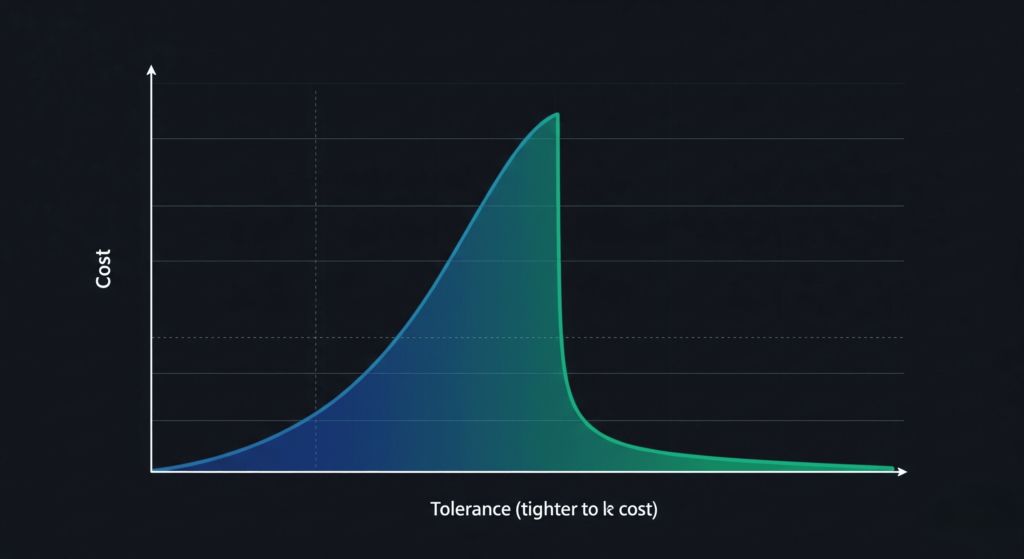

• Cost vs. Tolerance: The relationship between tolerance and cost is not linear. As tolerances become tighter, the cost increases exponentially due to the need for specialized equipment, slower machining times, and more extensive quality control. For example, a precision cnc machined parts for a medical device will be significantly more expensive than a simple bracket with standard tolerances, even if they are made from the same material.
• Avoiding Over-Engineering: As a designer, a key goal is to avoid over-engineering. You should always ask if a tighter tolerance is truly necessary for the part’s intended function. If a part can perform its job reliably with a standard tolerance, there is no reason to pay for a precision one.

A good cnc precision machining company will often work with you to analyze your part’s function and recommend the most cost-effective tolerance. This collaboration can help you optimize your design for manufacturability, reducing both cost and lead time without compromising on performance.

10. Conclusion

CNC machining tolerances are more than just numbers on a drawing; they are a fundamental part of the manufacturing process that dictates a component’s fit, function, and cost. Understanding the difference between standard and precision tolerances is essential for anyone involved in product design and manufacturing.

The core difference is that standard tolerances offer a balance of speed and cost for general applications, while precision tolerances are a specialized requirement for critical parts in demanding industries.

Making an informed decision on tolerances requires careful consideration of a part’s application, material, and required functionality. By communicating openly with an experienced cnc machining manufacturer and avoiding common misconceptions, you can optimize your designs for success.
